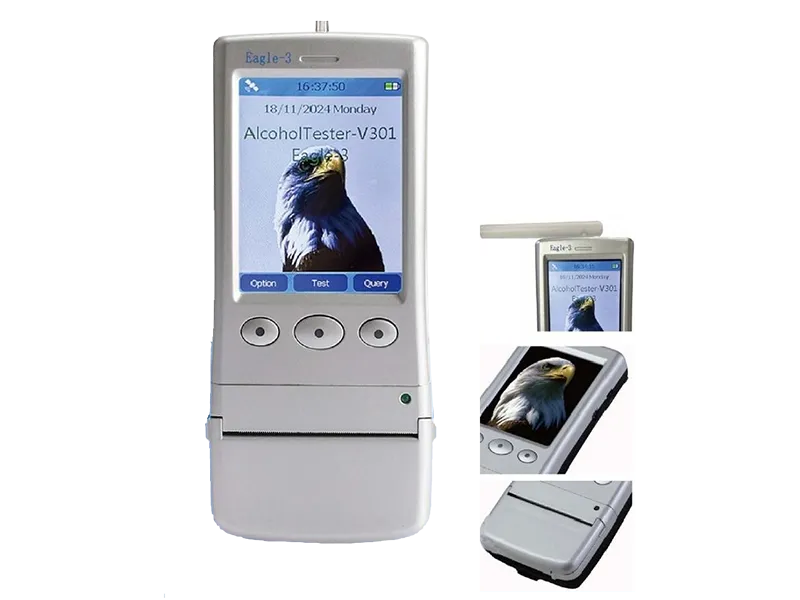

Eagle-3

UK made Electrochemical/fuel cell sensor highly specificity to alcohol, unaffected by other breath contaminants
Large LCD Screen: 3.5 inch colour touch screen
Every test record can be transferred to PC data management software in real time through 4G (GPRS) network enables background

Product Features

UK made Electrochemical/fuel cell sensor highly specificity to alcohol, unaffected by other breath contaminants
Large LCD Screen: 3.5 inch colour touch screen
Every test record can be transferred to PC data management software in real time through 4G (GPRS) network enables background
Only one PC can serve as the background management server
Built-in intelligent management software can easily data interaction with the other party’s business system, facilitating background data management
Built-in GPS Function Satellite positioning of inspection location(Optional)
Printer: built-in thermal printer

Specifications

Details	Technical Data
Principle of measurement	Electrochemical Sensor, alcohol specific
Measurement Range (BAC)	0.000mg/L – 2.500 mg/L
Resolution	0.001 mg/L
Accuracy	(0.040–0.0mg/L, or Relative error ±10%)
Repeatability	≤2.5%
Calibration	Every 6 months
Temperature range -operation	-10℃ ~ 45℃
Temperature range -storage	-30℃ ~ 70℃
Optimum Storage Conditions	Temperature: 23℃±5℃, Humidity: 50%±30%; Total hydrocarbon concentration ≤0.002ppm; Ambient atmospheric pressure
Display	3.5inch TFT LCD color touch screen
Memory Capacity	Stores more than 40000 measured values with date and time
PC Interface	USB
Communication	4G network (optional)
Printer	Support external micro Bluetooth Thermal or Dot Matrix Printer
Dimension(W*T)	approx 175mm × 120mm × 35mm
Weight	Approx.325g
Operation Voltage	State of charging: DC 10–14V; State of operation: DC 6.2V– 8.4 V
Battery	2000mAh/7.4V lithium-ion battery

Downloads

Download Datasheet
