Phased Array Radar uses electronically controlled antenna arrays to rapidly steer beams without mechanical movement. It offers fast target detection, high precision, and simultaneous tracking of multiple drones, making it ideal for advanced counter-UAS applications.
EXTREME TEMPERATURES
WATERPROOF IP65
BLIND ZONE＜50M
DETECTING
Capability & Features
Frequency Band and Operating Principle
Operating Frequency Band: 10.0–10.2 GHz
Operating Principle：Adopts azimuth mechanical scanning and pitch angle digital beamforming (DBF) technology
Coverage Range
Horizontal Coverage: 360°
Vertical Coverage: -5° to 60°
Maximum Detection Altitude: 3,000 meters
Detection Capabilities
Small Drones: Up to 8 km
Personnel: Up to 12 km
Helicopters or vehicles: Up to 20 km
Target Tracking Capabilities
Simultaneously Tracks: Over 1,000 targets
Azimuth Accuracy: 0.3°
Elevation Accuracy: 0.3°
Range Accuracy: 5 meters
Speed Detection Capabilities
Supports Radial Velocity Detection: 1–150 m/s (upgradeable to 2–300 m/s)
Anti-Interference and Environmental Adaptability
Strong Anti-clutter Performance
Reliable Operation In Harsh Environments: -40°C to 55°C
Protection Level: IP65
Performance and Power
Rotation speed: 30–60 RPM
Low power consumption: <350 W
Voltage range: DC 30–52 V
Dimensions and Weight
Dimensions: 600 × 800 × 85 mm
Weight: ≤35 kg
Connectivity
Supports Gigabit Ethernet connectivity

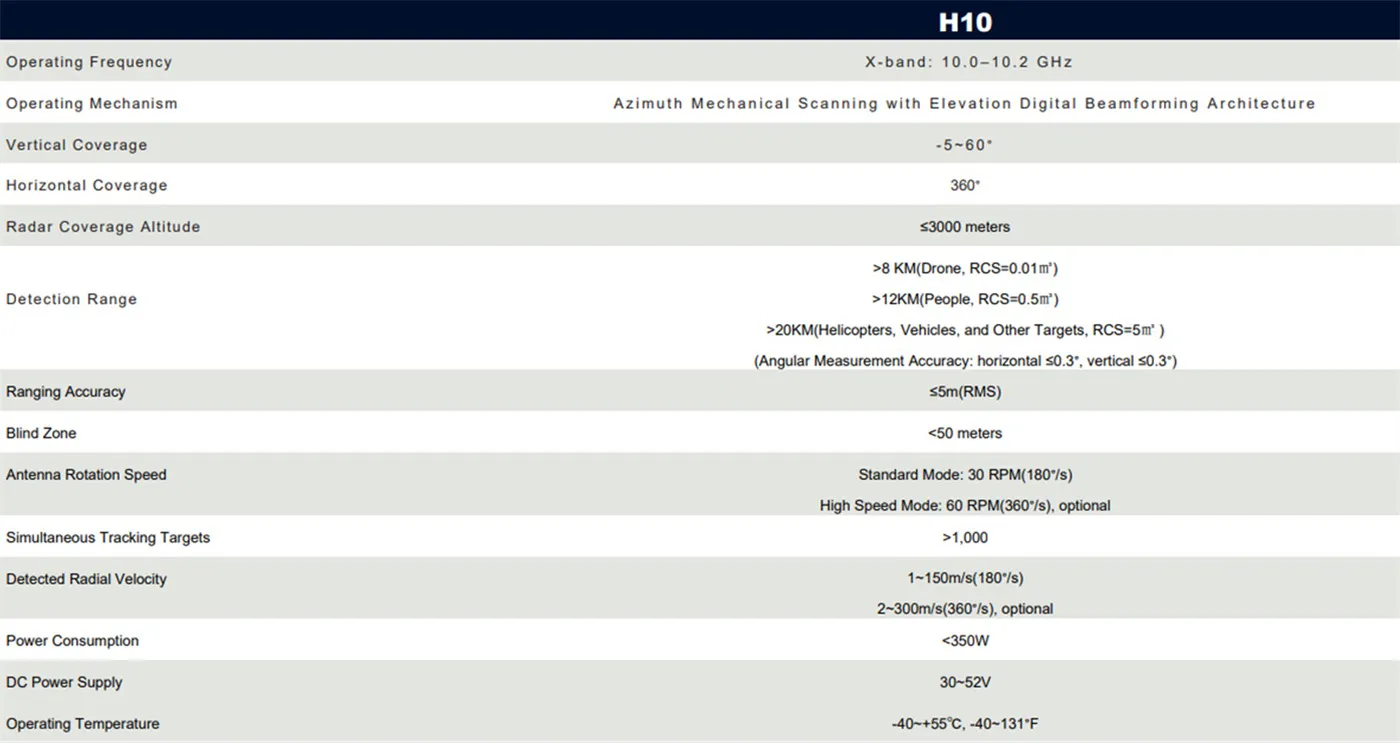

Specifications
* Depending on the RF environment & line of sight * Please email us for more information
